40m ECOCFD Antenna, VERSION 3

Feedpoint Split: 18.5% / 81.5%

Version 3.0-UN

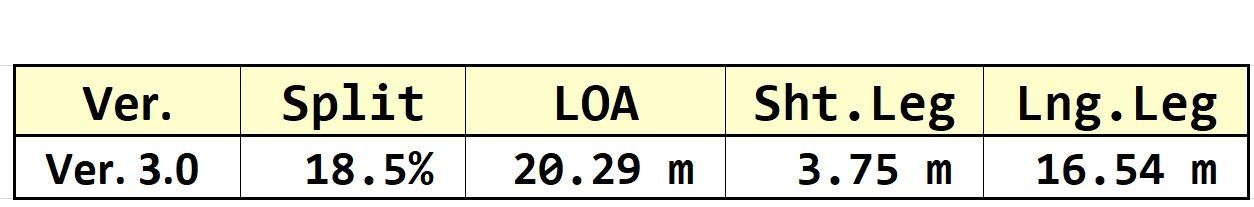

ALL versions of Ver.3.0 were made with the 4:1 Ruthroff 18.5% from the end with the 1:1 Guanella.   It uses the exact same two baluns and coax/wire as Version 1.  Only the position of the feedpoint has changed.  The 4:1 Ruthroff for this and future versions are configured as an UNUN.

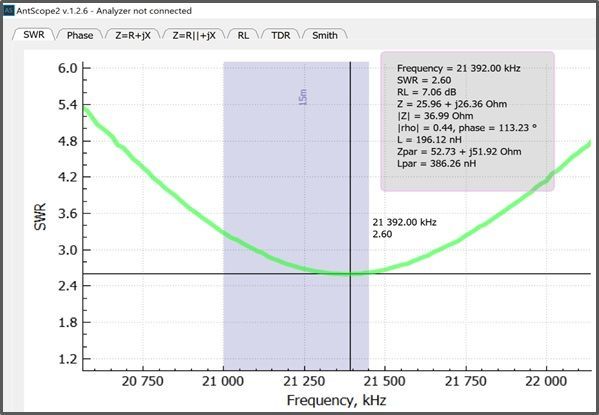

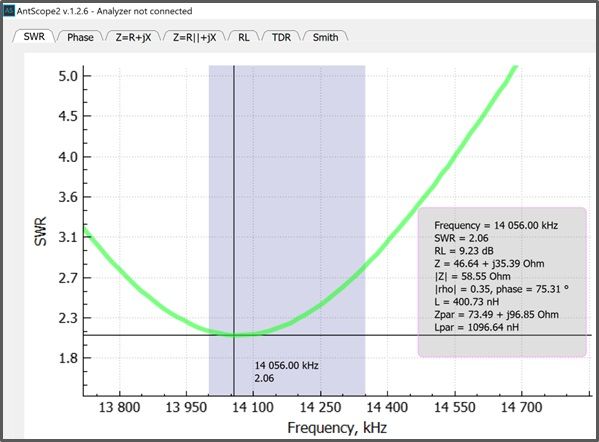

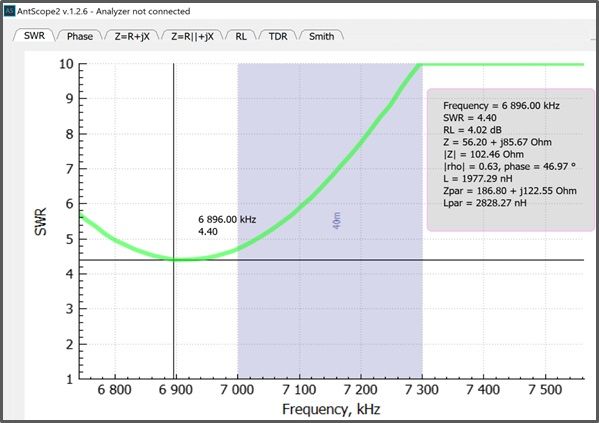

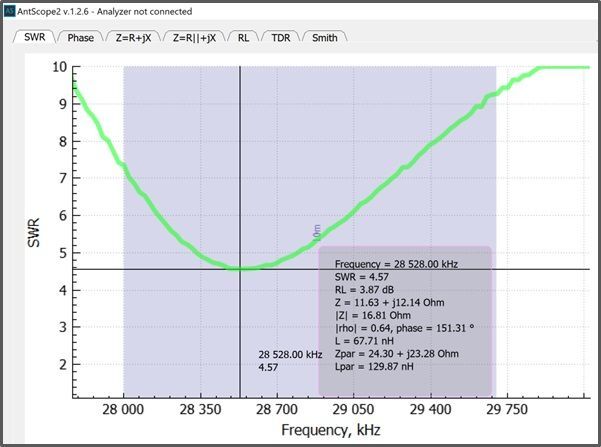

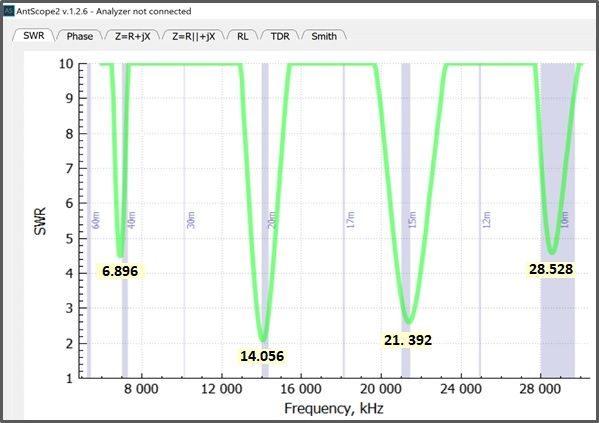

With the feedpoint located at 18.5%, the SWR curves changed slightly.

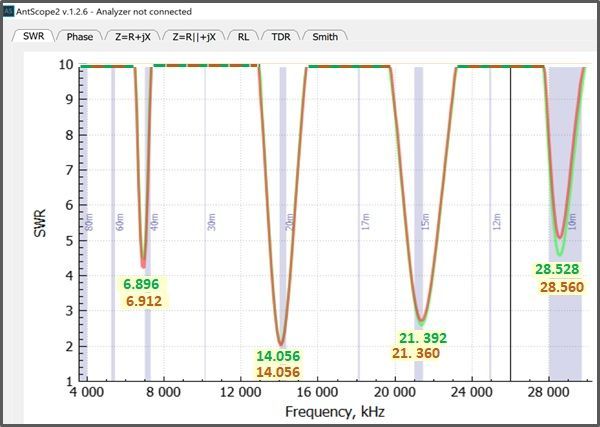

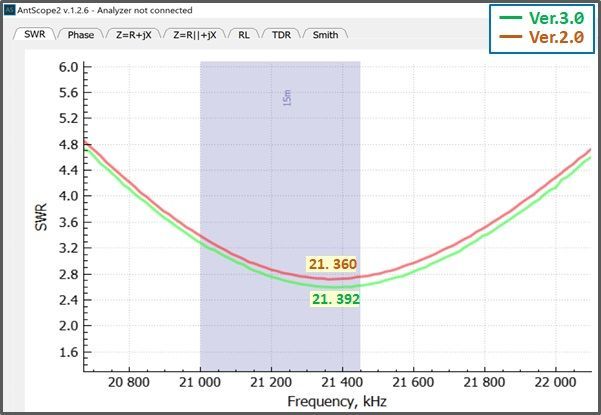

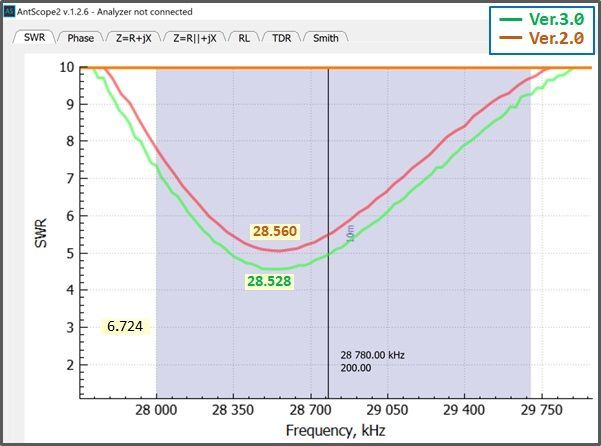

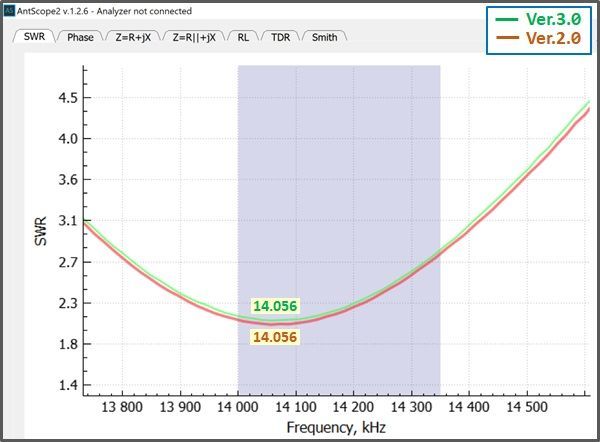

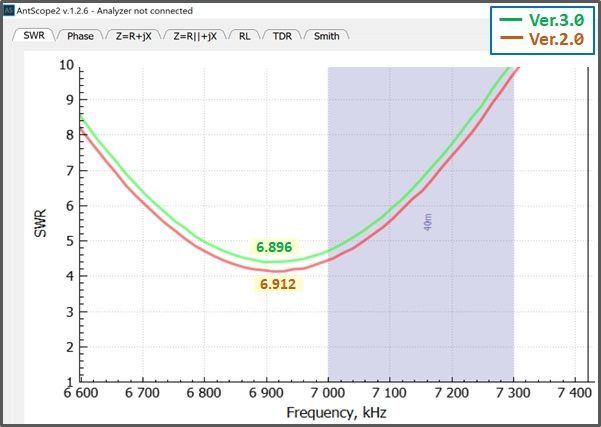

A comparison of Ver.3.0 to Ver.2.0 is shown below.

DOWNLOAD Ver.3.0 Data Files:

COMPARISON Ver.3.0 to Ver.2.0:
